Koenig & Bauer

Koenig & Bauer

Koenig & Bauer is one of the world's leading manufacturers of printing and packaging machinery and the world's oldest printing press manufacturer. Founded in 1817 and headquartered in Würzburg, Germany, the company develops technologies for folding carton, corrugated packaging, labels, commercial printing and industrial applications. For the fiber-based packaging industry, Koenig & Bauer provides an extensive technology portfolio covering sheetfed offset printing, flexographic corrugated post-printing, single-pass digital printing, flatbed and rotary die-cutting and folder-gluing. Its solutions include the Rapida press family, Chroma corrugated printing systems, Delta SPC digital corrugated technology through Koenig & Bauer Durst, CutPRO die-cutters and Omega folder-gluers. The company operates a global sales and service network and develops and manufactures equipment across multiple European production sites, including Radebeul, Würzburg, Barcelona, Desenzano del Garda and Istanbul. Revenue 2025: EUR 1,302.4 million; 5,526 employees; 89% of sales exported.

Products

Koenig & Bauer
Flexo Printers CI & Stack

Chroma High Tech

Chroma corrugated flexo post-print

Flexographic post-printing press for corrugated packaging with direct-drive vacuum transport, automatic washing and configuration-dependent printing and inspection options. Four format variants cover 1,700 × 1,300 to 2,400 × 1,600 mm. Mechanical speed is up to 11,000 sheets/hour for smaller formats and 10,000 for larger formats.

Four format variants

Up to 11,000 sheets/hour by format

Koenig & Bauer
Flexo Printers CI & Stack

Chroma Smart

Chroma corrugated flexo post-print

High-definition flexographic post-printing press for corrugated sheets, available as Chroma Smart 1700 and 2100. Siemens direct drives and vacuum sheet transport support register accuracy. The manufacturer specifies a maximum mechanical speed of 9,000 sheets/hour and corrugated board from 1 to 8 mm.

Flexographic corrugated post-print

Up to 9,000 sheets/hour

Koenig & Bauer
Flexo Printers CI & Stack

Chroma X Pro

Chroma corrugated flexo post-print

High-performance flexographic post-printing press for corrugated sheets. The 2,100 × 1,300 mm format, vacuum sheet transport and direct-drive technology target high-output corrugated production. The official technical table specifies up to 14,000 sheets/hour and corrugated board thicknesses from 1 to 8 mm.

Up to 14,000 sheets/hour

2,100 × 1,300 mm sheet format

Koenig & Bauer
Rotary Die Cutter

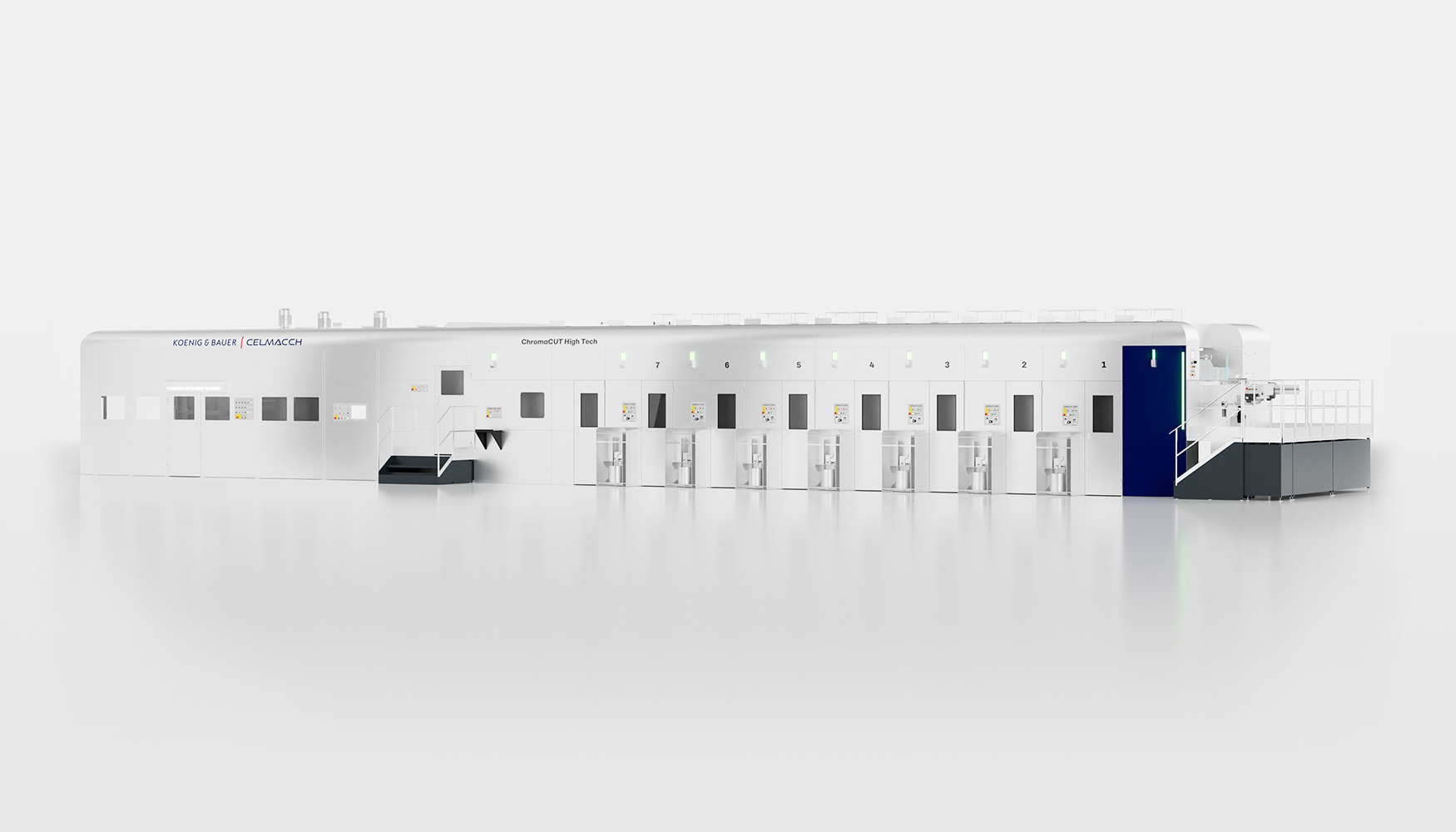

ChromaCUT High Tech

ChromaCUT flexo printing and rotary die-cutting

Combined flexographic printing and rotary die-cutting line for corrugated sheets. Fixed high-board-line modules print from below; direct drives and vacuum transport support print and cut register. Available features include plate change during production, automatic anilox change, optional print inspection and a non-stop vacuum stripping stacker. Output depends on sheet-format variant.

Integrated flexo and rotary die-cutting

On-the-run plate changes

Koenig & Bauer
Rotary Die Cutter

ChromaCUT X Pro

ChromaCUT flexo printing and rotary die-cutting

High-board-line rotary die-cutting system with integrated flexographic printing for corrugated packaging. It supports a nominal 2,800 × 1,600 mm sheet format, direct-drive technology and vacuum transport. The manufacturer lists a maximum mechanical speed of 12,000 sheets/hour and processing of corrugated board from 1 to 8 mm.

2,800 × 1,600 mm sheet format

Up to 12,000 sheets/hour

Koenig & Bauer
Flatbed Die Cutter

CutPRO Q 106 SB

CutPRO flatbed die-cutters

Flatbed die-cutter for industrial folding carton production, integrating cutting, stripping and blanking. The DriveTronic feeder and Cut2Print register system align the sheet to printed marks. It handles paper, solid board and corrugated board within the manufacturer’s stated material limits; actual output depends on substrate and tooling.

Up to 9,000 sheets/h

760 × 1,060 mm maximum sheet

Koenig & Bauer
Rotary Die Cutter

CutPRO X 106

CutPRO rotary die-cutters

Rotary die-cutter based on the Rapida medium-format platform for packaging, commercial print and in-mould labels. Configurable process units support die-cutting, creasing, embossing, perforation and Braille. Magnetic cylinders enable tool positioning, while DriveTronic SIS controls sheet alignment. The 16,000 sheets/h rating requires the optional speed configuration.

Rotary cutting and finishing

Up to 16,000 sheets/h with option

Koenig & Bauer
Digital Presses

Delta SPC 130

Digital corrugated printing

Single-pass digital printing system for corrugated board, offered in Core, Eco+ and Automatic configurations. Water Technology inks, non-contact printing and a digital workflow support short runs and variable packaging designs. Maximum sheet size, feeding, stacking and productivity depend on configuration; Eco+ and Automatic support sheets up to 1,300 × 2,800 mm.

Single-pass corrugated inkjet

Core, Eco+ and Automatic

Koenig & Bauer
Folder Gluer

Omega Alius

Omega folder-gluers

Highly automated folder-gluer series for high-speed folding carton production. Automatic belt-position setup from carton layouts and central job memory support repeat work and short changeovers. Available in widths 70, 90 and 110, with manufacturer-rated belt speeds up to 600 m/min for 200–550 g/m² cartonboard.

Up to 600 m/min belt speed

Automatic belt-position setup

Koenig & Bauer
Folder Gluer

Omega Allpro

Omega folder-gluers

Versatile folder-gluer family available in six working widths from 55 to 145 cm. It handles cartonboard and, depending on model and flute, corrugated board. Motorised setup, job memory options and optional peripherals support complex carton styles and integration with feeding, ejection and packing equipment. Maximum belt speed is 400 m/min.

Up to 400 m/min

Six working widths

Koenig & Bauer
Folder Gluer

Omega Intro

Omega folder-gluers

Folder-gluer series for cartonboard and corrugated packaging, with motorised adjustment and connection to peripheral equipment. Models 110, 145 and 165 cover different blank widths. The manufacturer specifies belt speeds up to 300 m/min, cartonboard from 200 to 550 g/m² and corrugated compatibility varying by machine size.

Up to 300 m/min

Models 110, 145 and 165

Koenig & Bauer
Folder Gluer

Omega Magnus

Omega corrugated folder-gluers

Folder-gluer designed specifically for corrugated packaging and heavy solid board. Models 165, 185, 210 and 230 provide large working widths, with fully automated processes and central job memory. The series handles corrugated board up to 7 mm and solid board from 300 to 1,200 g/m² at belt speeds up to 300 m/min, subject to material and configuration.

Corrugated specialist

Blank widths up to 2,300 mm
